Generator 180kVA 3Ph John Deere Tier 4F Env

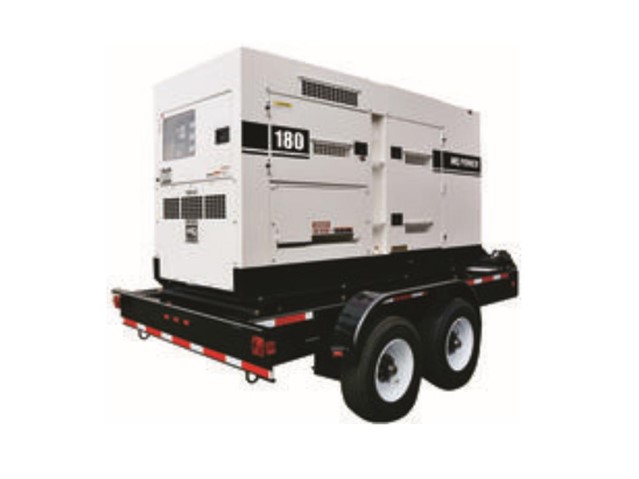

180 kVA Prime Output, Single/Three-Phase, John Deere Tier 4 Final Shown on optional trailer MQ Power WhisperWatt Super-Silent portable generators provide reliable power to meet the most demanding requirements. They are designed and built to withstand tough environments at construction sites and provide dependable temporary power at entertainment venues and disaster recovery operations. Reserve Diesel Generators Online Now. The DCA180SSJU4F offers a prime rating of 144 kW (180 kVA) and a standby rating of 158 kW (198 kVA). Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. Equipped with a Tier 4 certified John Deere diesel engine to easily meet the stringent EPA standards while providing profitable performance and reliability. The DCA180SSJU4F is manufactured within a powder-coated, weather resistant, 110% fluid contained steel housing that allows a substantially low operating noise level of 70 dB(A). It features an auto/start/stop digital controller that allows the generator to start from a remote location. Comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, AC load percentage, engine gauges and much more. Unit Specifications Prime Rating 144 kW 180 kVA Standby Rating 158 kW 198 kVA Generator RPM 1800 Voltage - Three Phase 208, 220, 240, 416, 440, 460, 480V Reconnectable Voltage - Single Phase 120, 127, 139, 240, 254, 277V Adjustable Generator Design Revolving field, Self-ventilated, Drip-proof, Single bearing Voltage Regulation (No Load to Full Load) ±0.5 % Power Factor 0.8 Armature Connection Star with Neutral Excitation Brushless with AVR No. Poles 4 Frequency 50 / 60 Hz Frequency Regulation (steady state load) ±0.25 % Sound Level (Full Load at 23 ft.) 70 dB(A) Engine Specifications Make/Model John Deere 6068HFG05 Emissions EPA Tier 4 Certified Starting System Electric Design 4-cycle, water cooled, direct injection, turbocharged. charged air cooled. EGR, DOC and SCR Gross Engine Power Output 257 bhp 192 kW Fuel Tank Capacity 319 gal 1210 L Fuel Consumption: Full load 10.1 gph 38.3 lph 3/4 load 7.8 gph 29.4 lph 1/2 load 5.8 gph 21.8 lph 1/4 load 4.0 gph 15.2 lph DEF Tank Capacity 29.7 gal 112.4L Coolant Capacity 10.5 gal 39.7 L Oil Capacity 8.58 gal 32.5 L Battery 12V 150Ah x1 TRLR180EV Trailer Specifications Gross Vehicle Weight Rating (GVWR) 14,000 lb 6,350 kg Gross Axle Weight Rating (GAWR) (ea.) 7,000 lb 3,175 kg Coupler Rating 3" Pintle Eye (25,000 lb) 2-5/16" Ball Coupler (20,000 lb) Tire Size ST235 / 80R16 LR-G Tire Load Rating (ea.) 3,520 lb 1,596 kg Wheel Bolt Pattern 8 on 6.5 Fits MQ Power Generator Models DCA150SSJU4F2 DCA180SSJU4F TRLR180EV Dimensions & Weights Overall Length 212.9 in 5,408 mm Overall Width 89 in 2,261 mm Overall Height 26.58 in 675 mm Operating Weight Without Fuel 2,404 lb 1,090 kg TRLR220EV Trailer Specifications Gross Vehicle Weight Rating (GVWR) 16,000 lb 7,257.4 kg Gross Axle Weight Rating (GAWR) (ea.) 8,000 lb 3,628 kg Coupler Rating 3" Pintle Eye (25,000 lb) 2-5/16" Ball Coupler (20,000 lb) Tire Size ST235 / 85R16 LR-G Tire Load Rating (ea.) 4,400 lb 1,996 kg Wheel Bolt Pattern 8 Lug Fits MQ Power Generator Models DCA150SSJU4F2 DCA180SSJU4F DCA220SSJU4F2 TRLR220EV Dimensions & Weights Overall Length 212.9 in 5,408 mm Overall Width 89 in 2,261 mm Overall Height 26.58 in 675 mm Operating Weight Without Fuel 2,137 lb 969.3 kg Notice: Features and equipment specifications are subject to change without notice.
