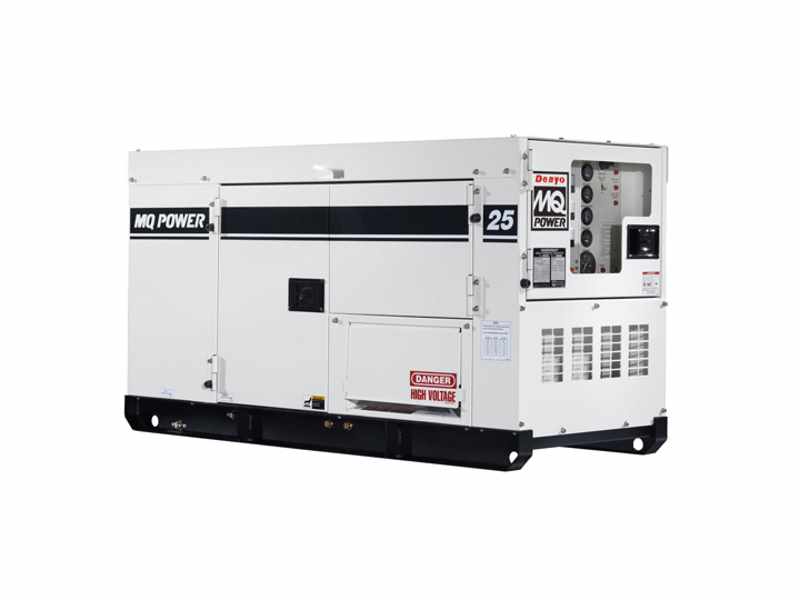

Generator 25kVA 3Ph Isuzu Tier 4F Env

25 kVA Prime Output, Single/Three-Phase, Isuzu Tier 4 Final MQ Power WhisperWatt Super-Silent portable generators provide reliable power to meet the most demanding requirements. They are designed and built to withstand tough environments at construction sites and provide dependable temporary power at entertainment venues and disaster recovery operations. And to safeguard the environment, the WhisperWatt Super-Silent Generator features an integrated 24-hour fuel tank with a fluid containment system. Reserve Diesel Generators Online Now. The DCA25SSIU4F offers a prime rating of 20 kW (25 kVA) and a standby rating of 22 kW (27.5 kVA). Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. It features an auto start stop that allows the generator to start from a remote location. The unit features an e-coat and powder-coated, weatherproof steel housing that allows a substantially low operating noise level of 65 dB(A). A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more. Unit Specifications Prime Rating 20 kW 25 kVA Standby Rating 22 kW 27.5 kVA Generator RPM 1800 Voltage - Three Phase 208, 220, 240, 416, 440, 480V Switchable Voltage - Single Phase 120, 127, 139, 240, 254, 277V Switchable Generator Design Revolving field, Self-ventilated, Drip-proof, Single bearing Voltage Regulation (No Load to Full Load) ±0.5 % Power Factor 0.8 Armature Connection Star with Neutral/ Zig Zag Excitation Brushless with AVR No. Poles 4-pole Frequency 60 Hz Frequency Regulation (steady state load) ±0.25 % Sound Level (Full Load at 23 ft.) 65 dB(A) Engine Specifications Make/Model Isuzu / 4LE2T Emissions EPA Tier 4 Final Certified Starting System Electric Design 4-cycle, water cooled, direct injection, turbocharged, EGR Gross Engine Power Output 40.2 bhp 30 kW Fuel Tank Capacity 41.7 gal 158 L Fuel Consumption: Full load 1.62 gph 6.12 lph 3/4 load 1.26 gph 4.77 lph 1/2 load 0.94 gph 3.57 lph 1/4 load 0.67 gph 2.52 lph Coolant Capacity 2.3 gal 8.8 L Oil Capacity 2.8 gal 10.5 L Battery 12V 53Ah x 1 TRLR25US2 Trailer Specifications Gross Vehicle Weight Rating (GVWR) 3,500 lb 1,588 kg Gross Axle Weight Rating (GAWR) (ea.) 3,500 lb 1,588 kg Coupler Rating 3" Pintle Eye (25,000 lb) 2" Ball Coupler (10,000 lb) 2-5/16" Ball Coupler (14,000 lb) Tire Size ST205/75D14 LR-C Tire Load Rating (ea.) 1,760 lb 789 kg Wheel Bolt Pattern 5 Lug Fits MQ Power Generator Models DCA20SPXU4F DCA25USI4CAN DCA25SSIU4F TRLR25US2 Dimensions & Weights Overall Length 105.79 in 2,687 mm Overall Width 56.18 in 1,427 mm Overall Height 20.85 in 529.6 mm Operating Weight Without Fuel 444 lb 201 kg TRLR75XF2 Trailer Specifications Gross Vehicle Weight Rating (GVWR) 7,000 lb 3,175 kg Gross Axle Weight Rating (GAWR) (ea.) 3,500 lb 1,588 kg Coupler Rating 3" Pintle Eye (25,000 lb) 2" Ball Coupler (10,000 lb) 2-5/16" Ball Coupler (14,000 lb) Tire Size ST205 / 75D15 LR-C Tire Load Rating (ea.) 1850 lb 826 kg Wheel Bolt Pattern 5 Lug 4.5 in Fuel Tank Capacity 100 gal 378.54 L Combined Tank Runtime: 50% Load 150.74 h 100% Load 87.46 h Fits MQ Power Generator Models DCA70SSJU4F DCA70SSIU4F DCA45SSIU4F DCA40SSKU4F2 DCA36SPXU4F DCA25SSIU4F DCA20SPXU4F DCA15SPXU4F DCA10SPXU4C TLG8SSK4F2 DA7000SSA3 TRLR75XF2 Dimensions & Weights Overall Length 151.3 in 3843 mm Overall Width 69.3 in 1760 mm Overall Height 24.8 in 599 mm Operating Weight With Fuel 2,077 lb 942 kg Without Fuel 1,366 lb 619.6 kg Notice: Features and equipment specifications are subject to change without notice.
