Generator 70kVA 3Ph Isuzu Tier 4F Env

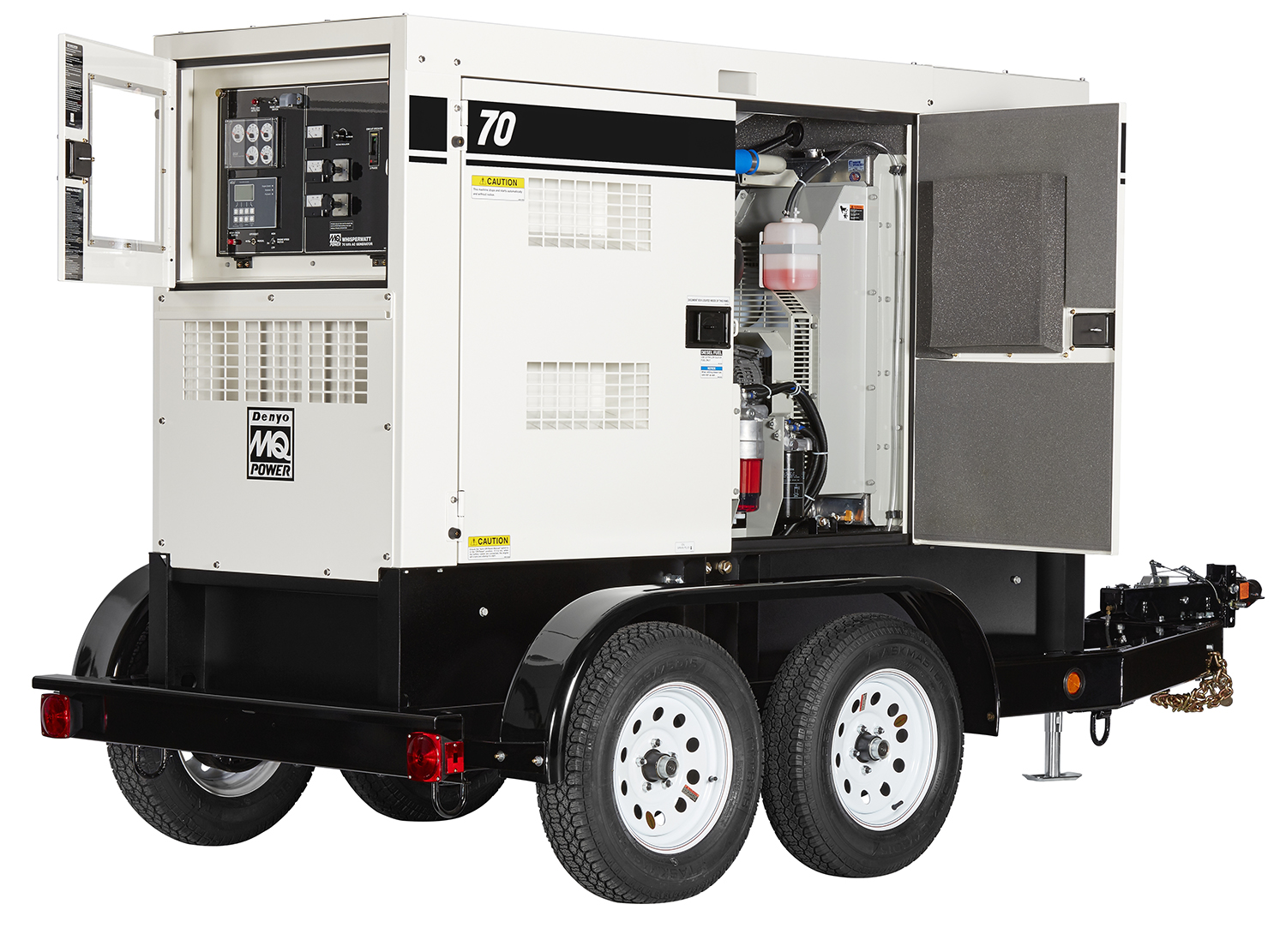

70 kVA Prime Output, Single/Three-Phase, Isuzu Tier 4 Final Shown on optional trailer MQ Power WhisperWatt Super-Silent portable generators provide reliable power to meet the most demanding requirements. They are designed and built to withstand tough environments at construction sites and provide dependable temporary power at entertainment venues and disaster recovery operations. The DCA70SSIU4F offers a prime rating of 56 kW (70 kVA) and a standby rating of 62 kW (77 kVA). Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. It features an auto start stop that allows the generator to start from a remote location. The unit features a powder-coated / e-coated, weatherproof steel housing that allows a substantially low operating noise level of 65 dB(A). A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more. Reserve Diesel Generators Online Now. Unit Specifications Prime Rating 56 kW 70 kVA Standby Rating 62 kW 77 kVA Generator RPM 1800 Voltage - Three Phase 208, 220, 240, 416, 440, 460, 480V Switchable Voltage - Single Phase 120, 127, 139, 240, 254, 277V Switchable Generator Design Revolving field, Self-ventilated, Drip-proof, Single bearing Voltage Regulation (No Load to Full Load) ±0.5 % Power Factor 0.8 Armature Connection Star with Neutral/ Zig Zag Excitation Brushless with AVR No. Poles 4-pole Frequency 60 Hz Frequency Regulation (steady state load) ±0.25 % Sound Level (Full Load at 23 ft.) 65 dB(A) Engine Specifications Make/Model Isuzu / BR-4JJ1X Emissions EPA Tier 4 Final Certified Starting System Electric Design 4-cycle, water cooled, direct injection, turbocharged, DOC, SCR Gross Engine Power Output 95.2 bhp 71 kW Fuel Tank Capacity 103 gal 390 L Fuel Consumption: Full load 4.4 gph 16.6 lph 3/4 load 3.5 gph 13.4 lph 1/2 load 2.6 gph 9.8 lph 1/4 load 1.7 gph 6.4 lph DEF Tank Capacity 7.4 gal 28L Coolant Capacity 5.5 gal 21 L Oil Capacity 3.96 gal 15 L Battery 12V 75Ah x 1 TRLR70US Trailer Specifications Gross Vehicle Weight Rating (GVWR) 7,000 lb 3,175 kg Gross Axle Weight Rating (GAWR) (ea.) 3,500 lb 1,588 kg Coupler Rating 3" Pintle Eye (25,000 lb) 2" Ball Coupler (10,000 lb) 2-5/16" Ball Coupler (14,000 lb) Tire Size ST205 / 75DI5 LR-C Tire Load Rating (ea.) 1,825 lb 826 kg Wheel Bolt Pattern 5 Lug on 4.5 in Fits MQ Power Generator Models DCA70SSIU4F DCA70USI3CAN TRLR70US Dimensions & Weights Overall Length 169.4 in 4,938 mm Overall Width 72.5 in 1,841.5 mm Overall Height 24.2 in 615 mm Operating Weight Without Fuel 1,089 lb 493.96 kg TRLR75XF2 Trailer Specifications Gross Vehicle Weight Rating (GVWR) 7,000 lb 3,175 kg Gross Axle Weight Rating (GAWR) (ea.) 3,500 lb 1,588 kg Coupler Rating 3" Pintle Eye (25,000 lb) 2" Ball Coupler (10,000 lb) 2-5/16" Ball Coupler (14,000 lb) Tire Size ST205 / 75D15 LR-C Tire Load Rating (ea.) 1,850 lb 826 kg Wheel Bolt Pattern 5 Lug on 4.5 in Fuel Tank Capacity 100 gal 378.54 L Combined Tank Runtime: 50% Load 78 h 100% Load 46 h Fits MQ Power Generator Models DCA70SSJU4F DCA70SSIU4F DCA45SSIU4F DCA40SSKU4F2 DCA36SPXU4F DCA25SSIU4F DCA20SPXU4F DCA15SPXU4F DCA10SPXU4C TLG8SSK4F2 DA7000SSA3 TRLR75XF2 Dimensions & Weights Overall Length 151.3 in 3,843 mm Overall Width 69.3 in 1,760 mm Overall Height 24.8 in 599 mm Operating Weight With Fuel 2,077 lb 942 kg Without Fuel 1,366 lb 619.6 kg Notice: Features and equipment specifications are subject to change without notice.
