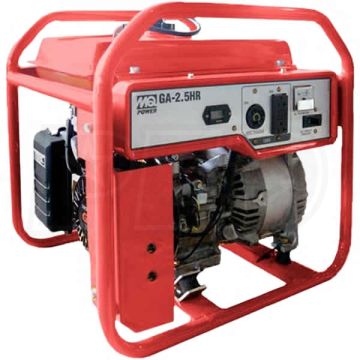

Generator 2.5kW Honda GX160 Recoil

The GA25HR model is ideal for small tool applications and with its high quality construction; this unit is tough enough for any jobsite condition. Lightweight and compact design for easy transport 100% copper windings for maximum conductivity Alternator design eliminates maintenance by removing brushes and slip rings Hour meter for proper service intervals and usage information Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator Runs for six hours on a full tank at full load Powered by a Honda GX160 engine with low-oil shutdown Unit Specifications Alternator Design Brushless Frequency 60 hz Phase Single Phase Voltage 120 V Sound level at 30 ft 70 dBA Fuel Tank Capacity 3.2 gal 12 L Power Generation Maximum Continuous Watts 2500 W 2200 W Amps at 120V 20.8 A 18.3 A Receptacles & Circuit Breakers Main Circuit Breaker 20 A Number of Poles 1 1 Receptacle of Each: 5-20R 125V GFCI 20A L5-20R 125V T-Lock 20A Dimensions & Weights Overall Length 20.9 in 530 mm Overall Width 17.7 in 450 mm Overall Height 20.1 in 510 mm Shipping Dimensions 20.9 x 17.7 x 20.1 in 530 x 450 x 510 mm Operating Weight 132 lb 60 kg Shipping Weight 110 lb 50 kg Engine Specifications Engine Make/Model Honda GX-160 Start Method Recoil Engine Power 5.5 HP 4.1 kW Engine RPM 3600 Fuel Type Gasoline Notice: Features and equipment specifications are subject to change without notice.
