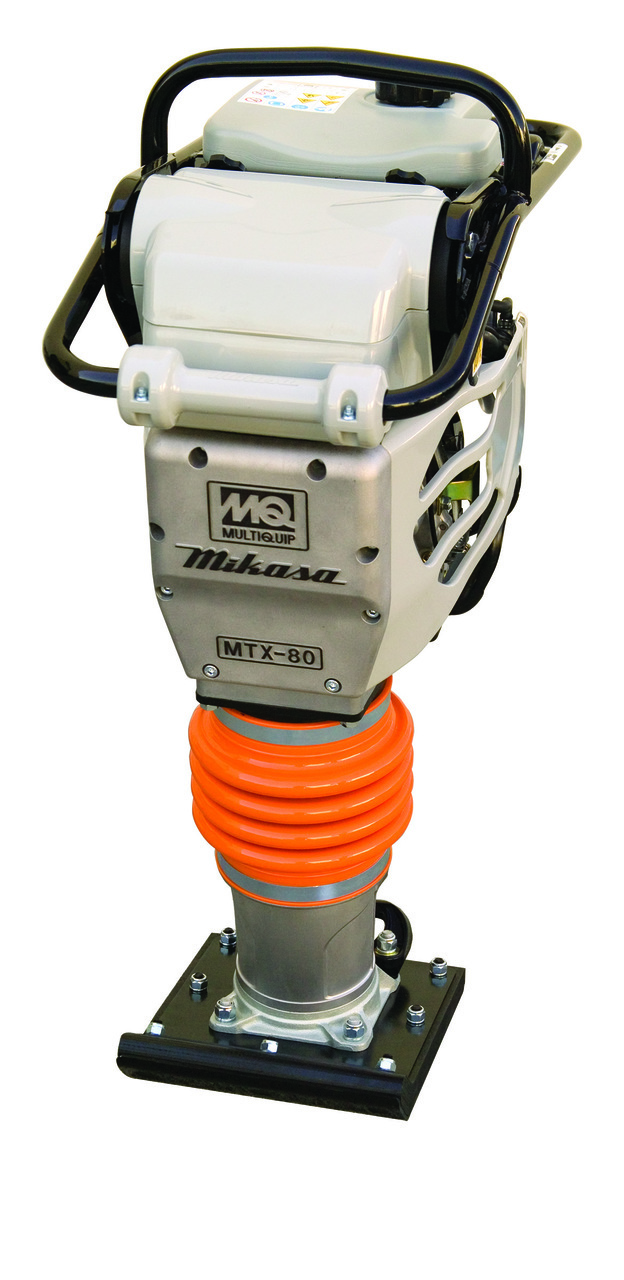

Rammer Honda GXR120 Diaphragm Carb

Honda GXR120 Engine, 3,505 lb impact force, 11.2 in shoe Multiquip’s Mikasa MTX-Series rammers now utilize the all new Honda GXR120 engine. The GXR120 is a high output OHC engine, designed specifically for rammer applications. MTX80HDR is ideal for high productivty with 3,505 lbs. of force combined with a 11.2" wide shoe. MTX-Series rammers are renowned for performance and ease of operation. The MTX-Series includes the features most preferred by contractors such as: Cyclonic air cleaners that capture 98% of airborne dust particles Long-lasting laminated wood and steel shoe Low vibration handles for operator comfort Combination hour meter/tachometer Durable guards to protect the engine from damage Redesigned fuel tank to meet EPA standards for evaporative emmissions Unit Specifications Blows Per Min. Up to 678* Impact Force 3,505 lbf 1590 kgf Shoe Jump Height 3.1 in 79 mm Shoe Dimensions (LxW) 13.4 x 11.2 in 340 x 285 mm Travel Speed Per Min. 49.2 ft 15 m Fuel Tank Capacity 2.7 qt 2.5 L Notes: *Variable speed impact — up to maximum impact force. Dimensions & Weights Overall Length 31.0 in 788 mm Overall Width 14.4 in 365 mm Overall Height 40.4 in 1027 mm Operating Weight 181 lb 82 kg Engine Specifications Engine Make/Model Honda GXR120 Start Method Recoil Engine Power 3.6 HP 2.7 kW Engine RPM 4100 Fuel Type Gasoline Notice: Features and equipment specifications are subject to change without notice.
