Compaction
Rammer Honda GXR100 Float Carb

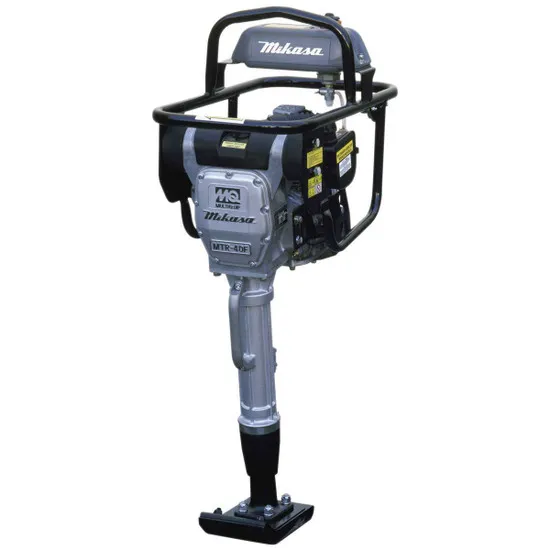

Honda GX100, 1215 lbs force, 5.9" shoe Multiquip's Mikasa MTR40HF is a unique rammer that is prefered by utility contractors and landscaper due to its ability to work in confined spaces.
Lightweight and portable - only 101 pounds (46 kg) Grease lubricated design eliminates making it ideal for narrow trenches Reliable 4-stroke Honda engine for reliable starting Ideal for landscapers, electrical contractors and plumbing contractors Optional foot extensions available for trench work Redesigned fuel tank to meet EPA standards for evaporative emissions
Unit Specifications
| Blows Per Min. | 699 |
|---|---|
| Impact Force | 1215 lbf · 5.5 kgf |
| Shoe Jump Height | 2.2 in · 55 mm |
| Shoe Dimensions (LxW) | 10.6 x 5.9 in |
270 x 150 mm
| Travel Speed Per Min. | 30 ft · 9 m |
|---|---|
| Fuel Tank Capacity | 2.1 qt · 2 L |
Dimensions & Weights
| Overall Length | 24.5 in · 622 mm |
|---|---|
| Overall Width | 13.8 in · 351 mm |
| Overall Height | 43.7 in · 1110 mm |
| Operating Weight | 101 lb · 46 kg |
| Shipping Weight | 107 lb · 49 kg |
Engine Specifications
| Engine Make/Model | Honda GX100 |
|---|---|
| Start Method | Recoil |
| Engine Power | 2.8 HP · 2.1 kW |
| Engine RPM | 4100 |
| Fuel Type | Gasoline |
Notice: Features and equipment specifications are subject to change without notice.
