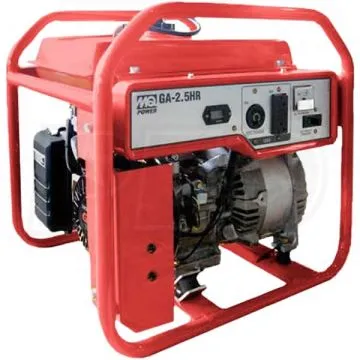

Generator 2.5kW Honda GX160 Recoil
The GA25HR model is ideal for small tool applications and with its high quality construction; this unit is tough enough for any jobsite condition. Lightweight and compact design for easy transport 100% copper windings for maximum conductivity Alternator design eliminates maintenance by removing brushes and slip rings Hour meter for proper service intervals and usage information Heavy-duty 1-inch (25 mm) steel pipe frame and shock mounts protect the generator Runs for six hours on a full tank at full load Powered by a Honda GX160 engine with low-oil shutdown
Unit Specifications
| Alternator Design | Brushless |
|---|---|
| Frequency | 60 hz |
| Phase | Single Phase |
| Voltage | 120 V |
| Sound level at 30 ft | 70 dBA |
| Fuel Tank Capacity | 3.2 gal · 12 L, Power Generation |
| Maximum | Continuous |
| Watts | 2500 W · 2200 W |
| Amps at 120V | 20.8 A · 18.3 A, Receptacles & Circuit Breakers |
| Main Circuit Breaker | 20 A |
| Number of Poles | 1 |
| 1 Receptacle of Each: | 5-20R 125V GFCI 20A, L5-20R 125V T-Lock 20A |
Dimensions & Weights
| Overall Length | 20.9 in · 530 mm |
|---|---|
| Overall Width | 17.7 in · 450 mm |
| Overall Height | 20.1 in · 510 mm |
| Shipping Dimensions | 20.9 x 17.7 x 20.1 in |
530 x 450 x 510 mm
| Operating Weight | 132 lb · 60 kg |
|---|---|
| Shipping Weight | 110 lb · 50 kg |
Engine Specifications
| Engine Make/Model | Honda GX-160 |
|---|---|
| Start Method | Recoil |
| Engine Power | 5.5 HP · 4.1 kW |
| Engine RPM | 3600 |
| Fuel Type | Gasoline |
Notice: Features and equipment specifications are subject to change without notice.
