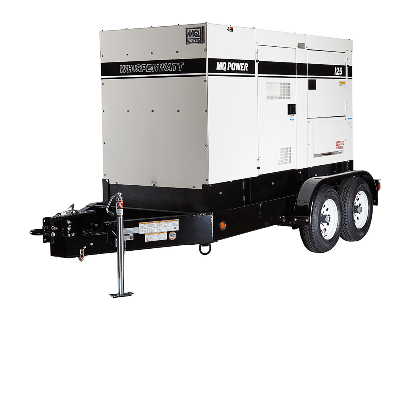

MY CART 100kW Diesel Generator Rental
Multiquip DCA125SSIU Diesel Generator Rental
Check out now
This unit offers a prime rating of 100 kW (125 kVA) and a standby rating of 110 kW (137.5 kVA). Our patented open delta generator winding provides precise voltage control, allowing superior motor starting capability. An electronic governor maintains frequency to ± 0.25% from no load to full load. It features an auto start stop that allows the generator to start from a remote location. The unit features a powder-coated / e-coated, weatherproof steel housing that allows a substantially low operating noise level of 66 dB(A). A comprehensive analog control panel provides instrumentation including AC ammeter, AC voltmeter, frequency meter, AC circuit breaker, engine gauges and much more
Call (415) 644-5792
| Prime Rating | 100 kW | 125 kVA |
| Standby Rating | 110 kW | 137.5 kVA |
| Generator RPM | 1800 | |
| Voltage – Three Phase | 208, 220, 240, 416, 440, 460, 480V Switchable | |
| Voltage – Single Phase | 120, 127, 139, 240, 254, 277V Switchable | |
| Generator Design | Revolving field, Self-ventilated, Drip-proof, Single bearing | |
| Voltage Regulation (No Load to Full Load) | ±0.5 % | |
| Power Factor | 0.8 | |
| Armature Connection | Star with Neutral/ Zig Zag | |
| Excitation | Brushless with AVR | |
| No. Poles | 4-pole | |
| Frequency | 60 Hz | |
| Frequency Regulation (steady state load) | ±0.25 % | |
| Sound Level (Full Load at 23 ft.) | 66 dB(A) | |
| Make/Model | Isuzu | |
| Starting System | Electric | |
| Design | 4-cycle, water cooled, direct injection turbocharged, charged air cooled EGR, DOC, SCR | |
| Gross Engine Power Output | 166 bhp | 124 kW |
| Fuel Tank Capacity | 169 gal | 640 L |
| Fuel Consumption: | ||
| Full load | 7.11 gph | 26.9 lph |
| 3/4 load | 5.6 gph | 21.2 lph |
| 1/2 load | 4.1 gph | 15.5 lph |
| 1/4 load | 2.6 gph | 10 lph |
| DEF Tank Capacity | 7.4 gal | 28L |
| Coolant Capacity | 10.3 gal | 39 L |
| Oil Capacity | 6.05 gal | 22.9 L |
| Battery | 12V 150 Ah x 1 | |
| Gross Vehicle Weight Rating (GVWR) | 10,000 lb | 4,536 kg |
| Gross Axle Weight Rating (GAWR) (ea.) | 5,000 lb | 2268 kg |
| Coupler Rating | 3 in. Pintle Eye – 25,000 lb (11,340kg); 2-5/16 in. Ball Coupler – 14,000 lb (6,350 kg) | |
| Tire Size | ST225/75R15 LR-D | |
| Tire Load Rating (ea.) | 2,540 lb | 1,152 kg |
| Wheel Bolt Pattern | 6 Lug on 5.5 in | |
| Overall Length | 181 in | 4,597 mm |
| Overall Width | 79.5 in | 2,019 mm |
| Overall Height | 24.7 in | 627 mm |
Diesel Generator Amp Requirement Sizing Chart
