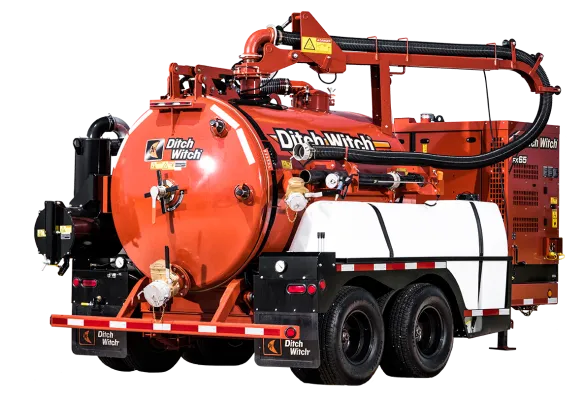

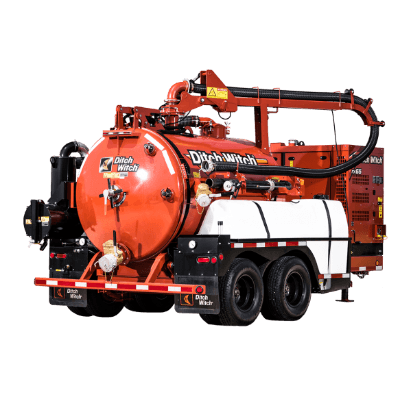

MY CART Ditch Witch FX60 – 1200 gallon
| Water Pump Pressure | 3,500 psi (241 bar) |
| Water Pump Flow | 5.2 gpm (24 lpm) |
| Vacuum Tank Door Dia. | 52 in. (1.3 m) |
| Vacuum System Drive Type | Belt |
| Vacuum System Displacement | 928 cfm (26.3 m³/min.) |
| Maximum Vacuum | 16 inHg (405 mmHg) |
| Drain Valve Size | 6 in. (152 mm) |
| Inlet Valve Size | 4 in. (102 mm) |
| Primary Valve Shutoff Size | 12 in. (305 mm) |
| Filter | Washable polyester |
| Filter Area | 130 sq. ft. (12 sq. m) |
| Water Trap Capacity | 8 gal. (30.3 l) |
| Suction Hose Size | 4 in. (102 mm) |
| Suction Hose Length | 50 ft. (15.2 m) |
| Hose Reel Capacity w/4 inch | 50 ft. (15.2 m) |
| Tank Capacity | Vacuum Tank: 1,200 gal. (4,542 l)Water Tank: 500 gal. (1,893 l) |
| Battery | |
|---|---|
| Voltage | 12V |
| Amps | 800A |
| Engine | |
|---|---|
| Engine Make | Cummins® |
| Engine Model | B3.3NA |
| Fuel Type | Diesel |
| Bore x Stroke | 3.74 x 4.53 in. (95 x 115 mm) |
| Cylinders | 4 |
| Gross Horsepower | 60 hp (45 kW) |
| Aspiration | Natural |
| Cooling | Liquid |
| Displacement | 199 ci (3.3 l) |
| Rated Speed | 2,200 rpm |
| Dimensions | |
|---|---|
| Overall Length | 245 in. (6,223 mm) |
| Overall Height | 99 in. (2,515 mm) |
| Overall Width | 100.5 in. (2,553 mm) |
| Dry Weight | 24,880 lbs. (11,285 kg) |
| Hydraulics | |
|---|---|
| Hydraulic Pressure | 2,500 psi (172 bar) |
| Hydraulic Drive Type | Gear |
| Hydraulic Reservoir | 15 gal. (57 l) |
